machinery construction equipment machine to make concrete blocks

  • 1 - 1 Sets
    $26,800.00
  • >=2 Sets
    $26,000.00
Model Number:
QT8-15
Power:
37kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia
Condition:
New
Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material:
Concrete
Processing:
Brick Production Line
Method:
Hydraulic Pressure
Automatic:
Yes
Capacity:
11000-60000 Pieces/day
Place of Origin:
Shandong, China
Brand Name:
SHIYUE
Voltage:
Local Voltage
Dimension(L*W*H):
8300*1860*3000mm
Certification:
CE/ ISO9001
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Multifunctional
Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 400*200*200 mm, 230*220*115 mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1.5 years
Core Components:
PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
Color:
According to Client Requirement
Raw material:
sand,cement, fly ash, lime,etc.
Pallet size:
950*900mm
Vibration frequency:
2800-4500r/min
Main Vibration Form:
platform vibration
Total Weight:
9T
Molding cycle:
15-20s
Factory area:
600m2
Brick Type:
hollow block, paver block,cubstone, solid block etc
Product Name:
QT8-15 machine to make concrete blocks
Supply Ability
Supply Ability:
5000.0 Set/Sets per Year QT8-15 machine to make concrete blocks
Packaging & Delivery
Packaging Details
Standard exported package or according to customer needs
Port
Qingdao port,Shandong province
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description
Introduction of block making machine

1.Material and welding:all material and spare parts selected according international CE standard ,Carbon dioxide protection welding will assure whole line stable running.

2.Control PLC: we select original Mitsubishi PLC combine with independently develop machine control program ,assure stable and high-efficiency working status.

3.Hydraulic system:hydraulic spare parts be ordered according our block machine characteristics from Taiwan.

4.Mould: newest heat treatment device and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58 HRC so that the mould can be used more than 100 thousand times.

Block machine Parameter

Machine Dimensions
8300*1860*3000mm
Forming period
15-20s
Viberation force
100KN
Pallet size
850x680mm
Weight
9T
Raw Materials
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite
Finished products
solid/hollow blocks,curb stone, paving stones

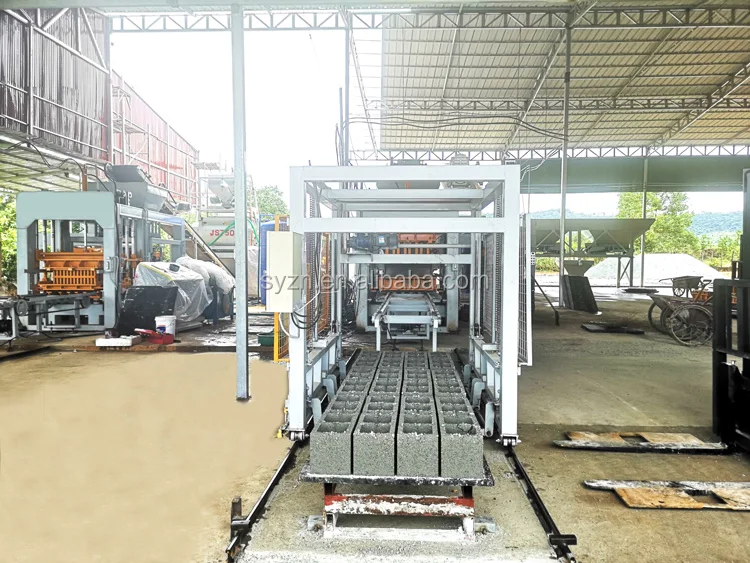

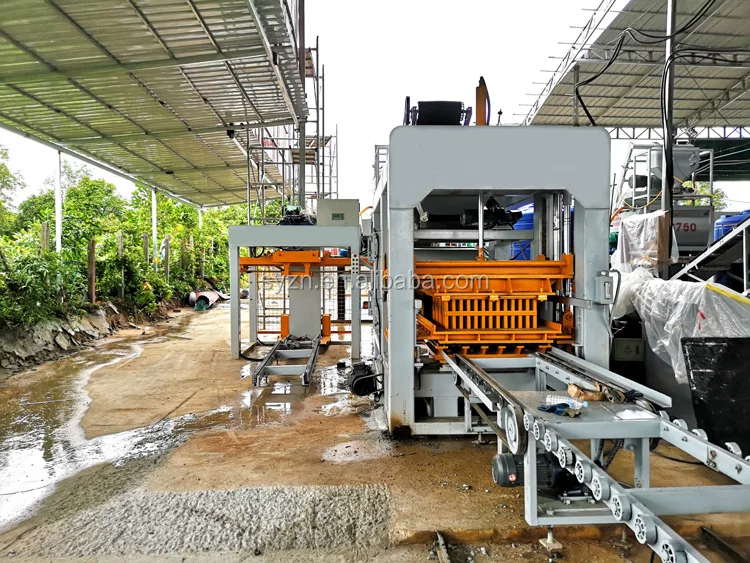

Block Machine Pictures

Hydraulic station

1.Guarantee the blocks with good quality, smooth appearance, high density
2.automatically adjust the oil flow and pressure

Carburized mould

1.`improve the using lifetime of machine by 50%
2.Hardness reached up to HRC 52

Siemens motor

1.Our vibration system adopt Siemens brand motors, vibration evently strong and quickly
2.It is more stable, can update the production perimeters
Theoretical Blocks Capacity
Item
Block size(mm)
Molding cycle
Pcs/ mould
Pcs/ Hour
Pcs/ 8 Hours
Hollow block
400x200x200
15-20s
8
1440-1920
11520-15360
Hollow block
400x150x200
15-20s
10
1800-2400
14400-19200
Standard brick
240*115*53
15-17s
42
9000-10000
90000-100000
Paver bricks
200x100x60
18-23s
28
4382-5600
35056-44800
Paver bricks
200x160x60
18-23s
20
3130-4000
25040-32000
You can use one machine produce different type blocks just changing moulds
It can produce hollow/solid blocks, riverside bricks, revetment bricks, square bricks, grassed bricks ,paver, interlocking blocks, curbstone,colored paver,etc with different moulds.If you have special shape,our engineer also can special design mould for you.
Packaging And Shipping
Packing is nude package or plastic according to customer need
1. The whole brick machine production line equipment is mainly the full container sea shipping,
2. Brick machine equipment finish manufacturing and testing, next to clean up, and then do another paint protection,
3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,
4. Then load brick machines into the container by forklift,
5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.
Our Service

Pre-sale Service

(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Visit our factory

After-sale Service

(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) 24 hours service

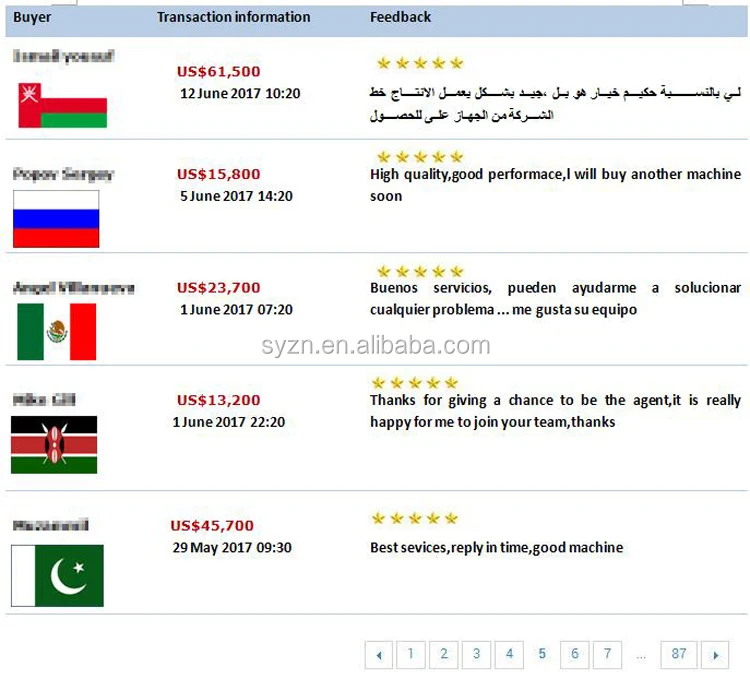

Customer feedback of our block machine

We has cooperated with more than 50 countries and received high reputation from our customer.We have won a good reputation among customers with good quality, competitive prices and advanced techniques since our establishment.
Company Profile

RFQ

1> Is this block machine suitable for us to use?

Answer:Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet your request.

2>Which industry did this block machine usually be used in?

Answer: Interlocking bricks, Hollow bricks, Paving bricks,Solid bricks,etc

3>How to use the block machine?

Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.

4>How about the after sale service of block machine?

Answer: 1 year guarantee for the whole machine (without the spare parts).

5>what's your payment term

our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
